Knife gate valve JTV
Knife gate valve
JTV
The optimal valve solution for junc traps and high density cleaners
Available size range:
250 x 250 mm (10" x 10")
Product data sheet:
Discover more
Product information
About JTV

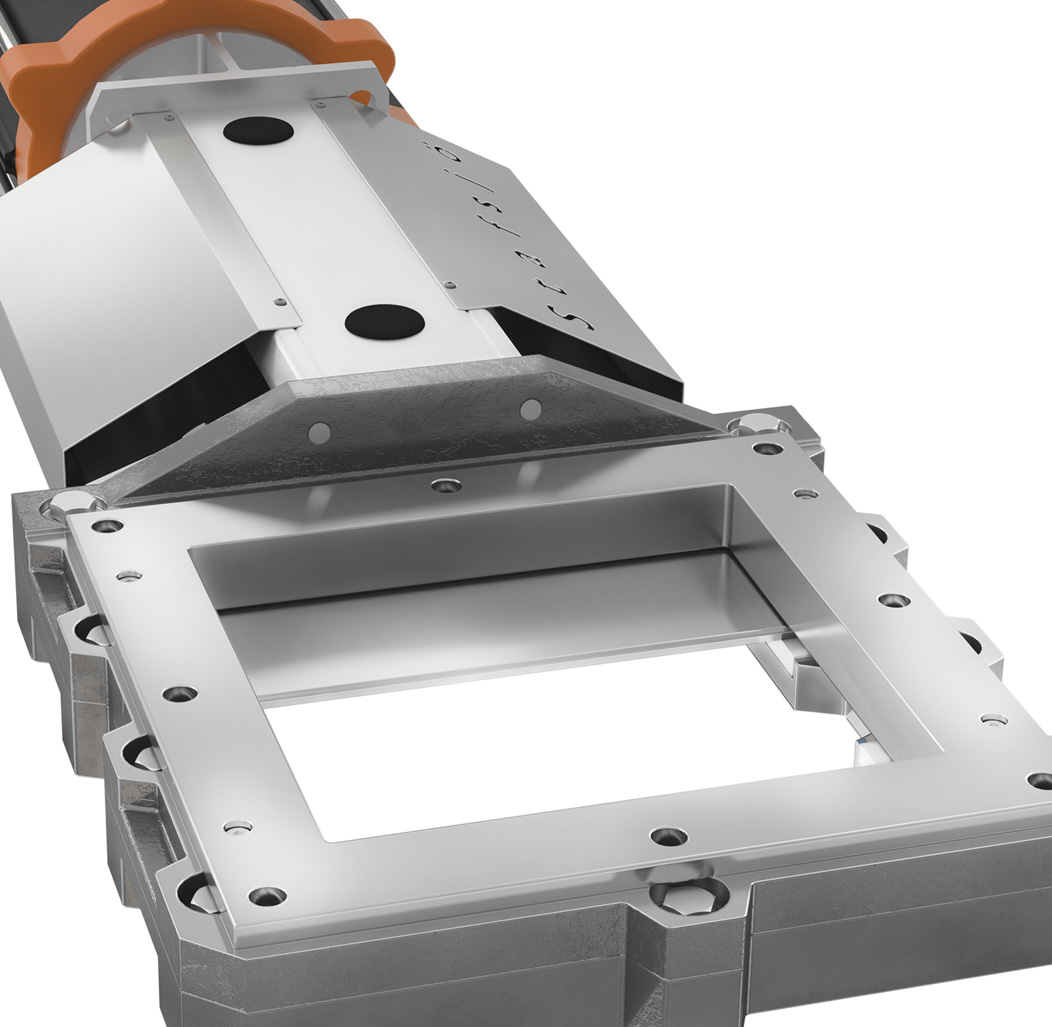

Stafsjö’s knife gate valve JTV is the square optimal performer for junc traps and high density cleaners separating abrasive materials such as sand, stones, staples, glass and other type of reject from the process media.
The JTV knife gate valve is the standard discharge valve in Stafsjö’s Junc Trap solution. It is modular designed and can be customized with automation accessories to different process conditions. As standard the JTV is supplied with a precision machined stainless steel valve body and a hard chromed duplex gate. The top works is solid to perform during long periods of time in horizontal high cycling applications.
Download the product data sheet for additional technical information.
Specifications
Shut-off technique
Uni-directional
Valve seat material
Polyurethane
Connection type
Wafer/Semi lugged
Valve body material
Stainless steel
Industries
Biomass
Pulp and Paper
Product features
