Knife gate valve RKS
Knife gate valve
RKS
A stainless steel square or rectangular knife gate valve for powder, bulk and waste water sludge.
Available size range:
200 x 200 mm - 1000 x 1000 mm (8" x 8" - 40" x 40")
Product data sheet:
Discover more
Product information
About RKS

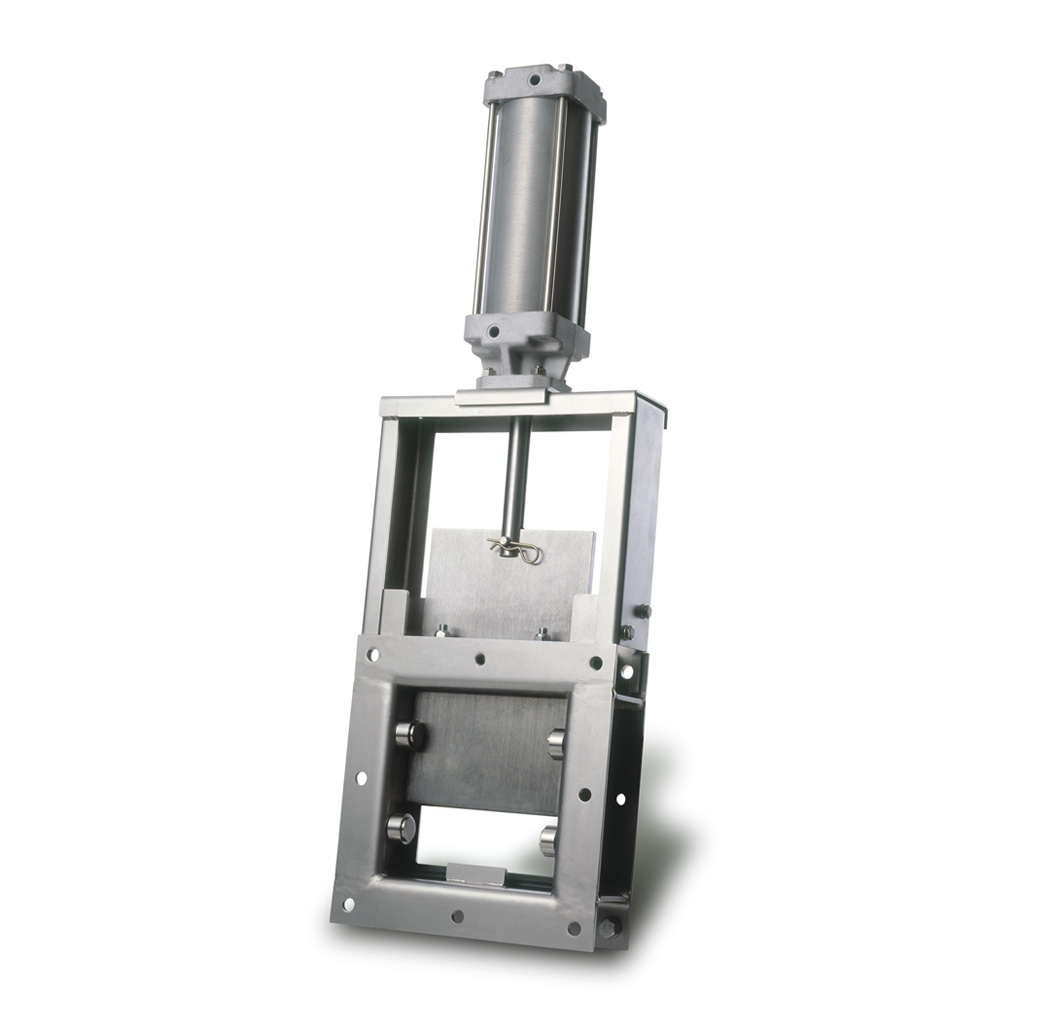

Stafsjö’s knife gate valve RKS is an isolating valve designed for low pressure systems in water and waste water applications, but it can also be used in other applications handling powder, pellets or similar.

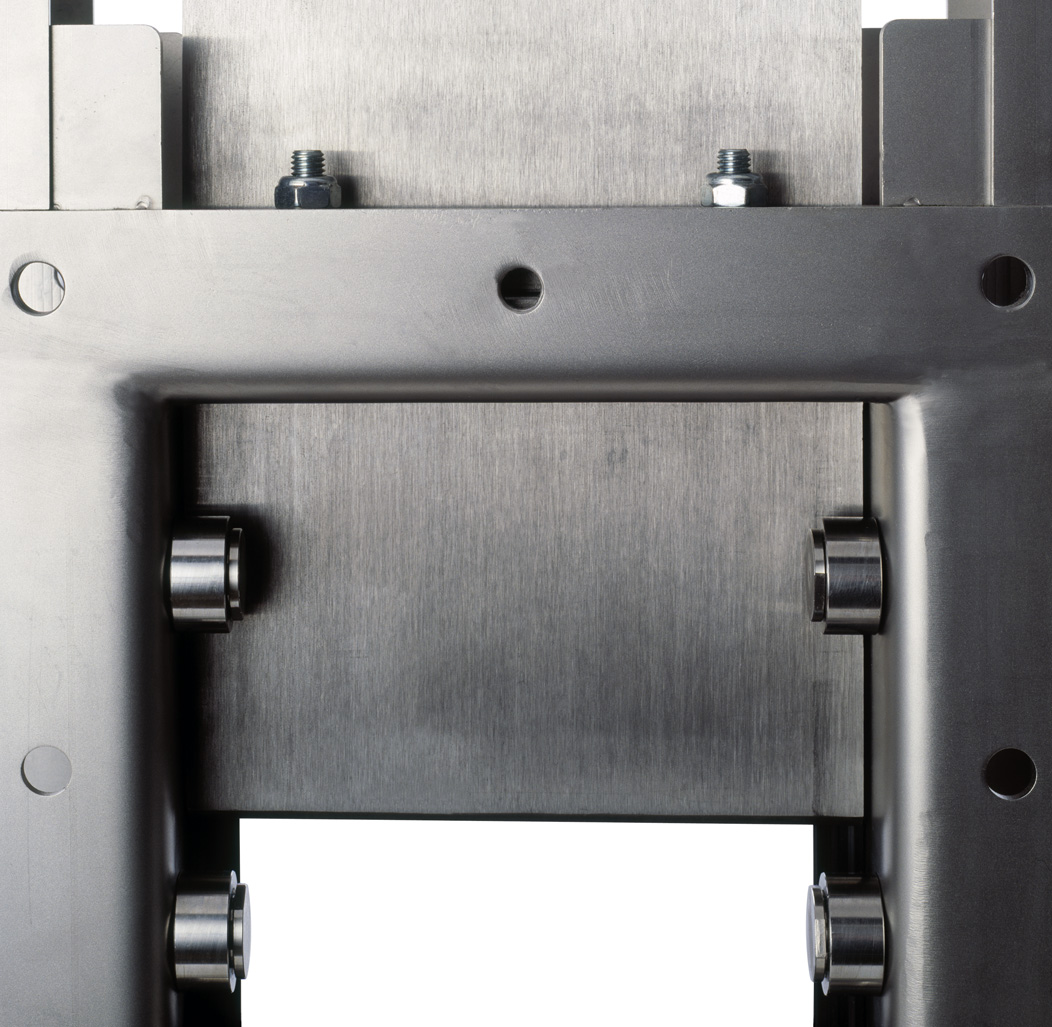

The RKS valve is a robust welded construction in stainless steel. It is equipped with a gate in stainless steel and a sealing profile in Nitrile or brass. The valve is modular designed and it can easily be provided with different actuators and accessories. Further information is available in the product data sheet.
Specifications
Shut-off technique
Uni-directional
Valve seat material
Metal
NBR
Connection type
Flanged
Wafer/Semi lugged
Valve body material
Stainless steel
Industries
Chemical
Food and Beverage
Mining
Power
Pulp and Paper
Steel
Water treatment
Downloads
- Title Format Size Restriction
-
Knife gate valve RKS
PDF 1,020 KB
- Title Format Size Restriction
-
Manual actuators
PDF 2 MB -
Double acting pneumatic cylinder CFP
PDF 2 MB -
Electric motor AUMA
PDF 91 KB -
Hydraulic cylinder
PDF 2 MB -
Stafsjö standard accessories
PDF 4 MB
- Title Format Size Restriction
-
Knife gate valve specification guide
PDF 6 MB
- Title Format Size Restriction
-
Installation and service instruction
PDF 4 MB
